Why NexWatt?

Why has a new product line been created in the TECit brand group?
It was the very internal need to ensure the ultimate quality required for our LED Technology Lighting Solutions, whether in constant current, or in Constant Voltage.

in the electronic part of the market today and in this case as regards the sources of food, these to ensure a smooth operation in a period of time that does not defraud consumers, it is necessary that not only the development/architecture of these components, but also very important the careful selection of electronic components, these that will guarantee the proper functioning for several years. In fact, this is always the position of TECit, manufacturing products that customers feel determined to re-select them and our brands.

We are also receptive to industrial customers seeking the necessary power supplies for their products, who need to customize not only the electrical data, I mean, Voltage and current, but also wiring solutions that will provide a quick installation inside your equipment.

Drive

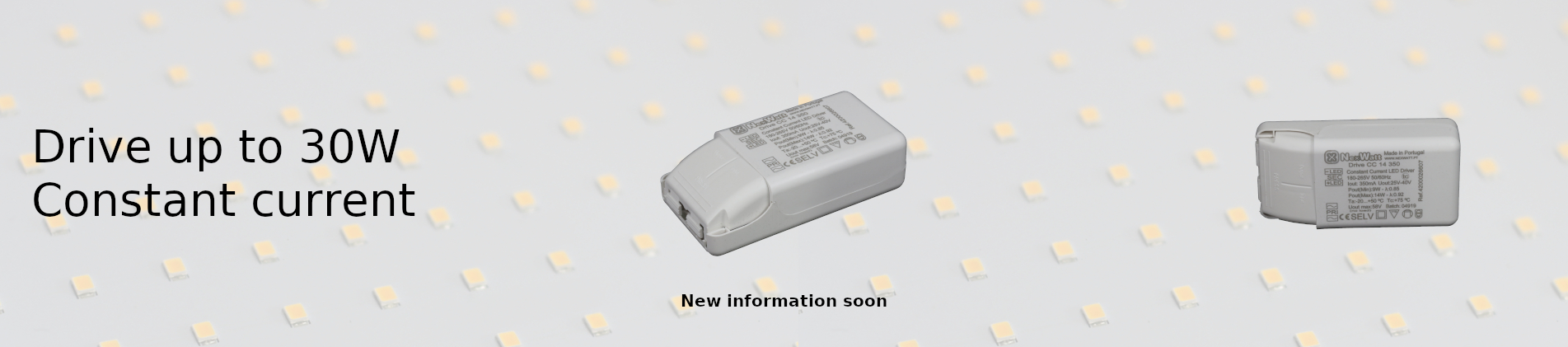

Drive up to 30W constant current
More information

Characteristics:
Iout: 100mA to 1200 mA
Uout:15V-40V
Pout(Min):9W - λ:0.85  ||  Pout(Max):30W - λ:0.95
Ta: -20...+50ºC
Uout max: 58V
Dimensions (mm): 101x51x30

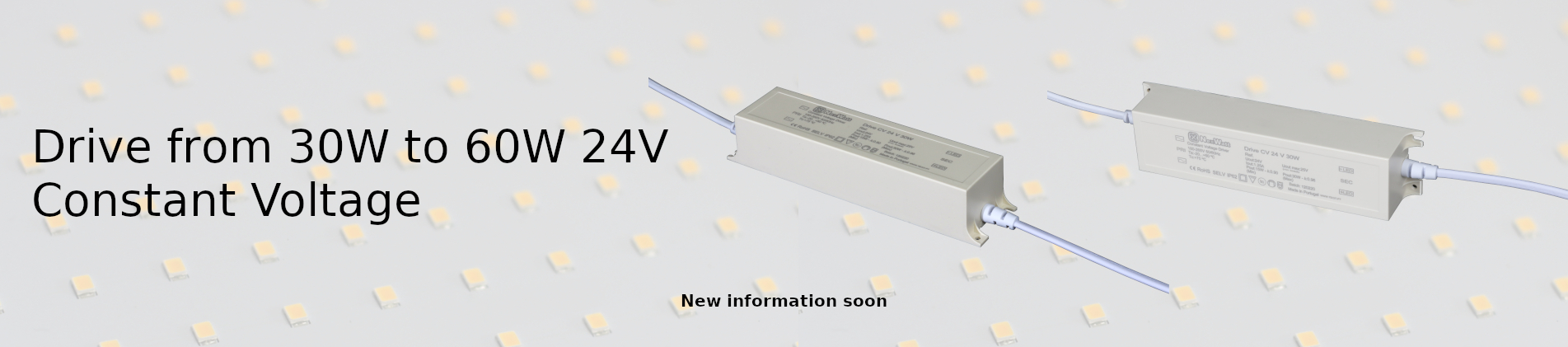

Drive from 30W to 60W 24V constant voltage
More information

Characteristics:
Uout:24V
Pout: 30 to 60W
Ta: -20...+50ºC
Uout max: 26V
Dimensions (mm): 184x44x35

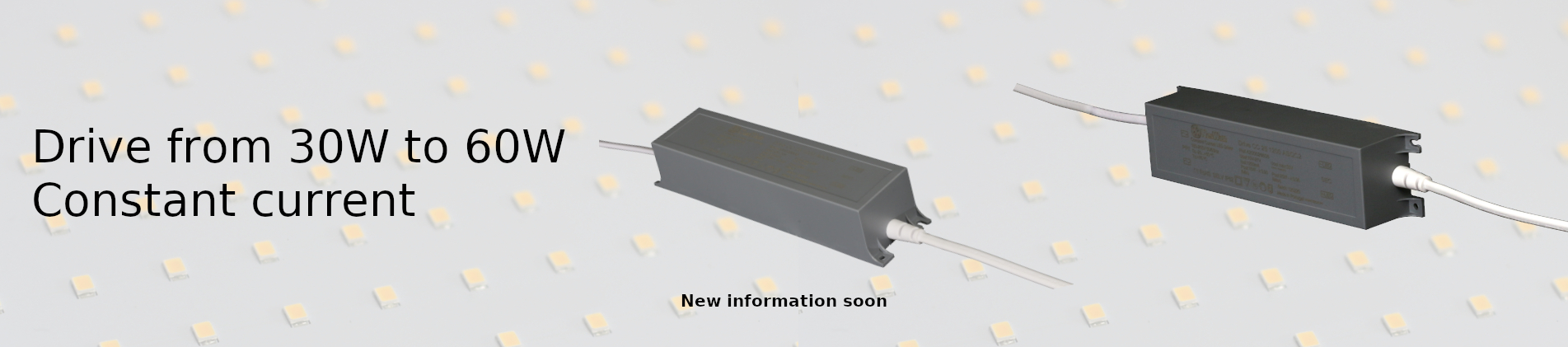

Drive from 30W to 60W constant current
More information

Characteristics:
Iout: 350mA to 1400mA
Uout:20V-45V
Pout(Min):30W - λ:0.92  ||  Pout(Max):60W - λ:0.96
Ta: -20...+50ºC
Uout max: 58V
Dimensions (mm): 184x44x35

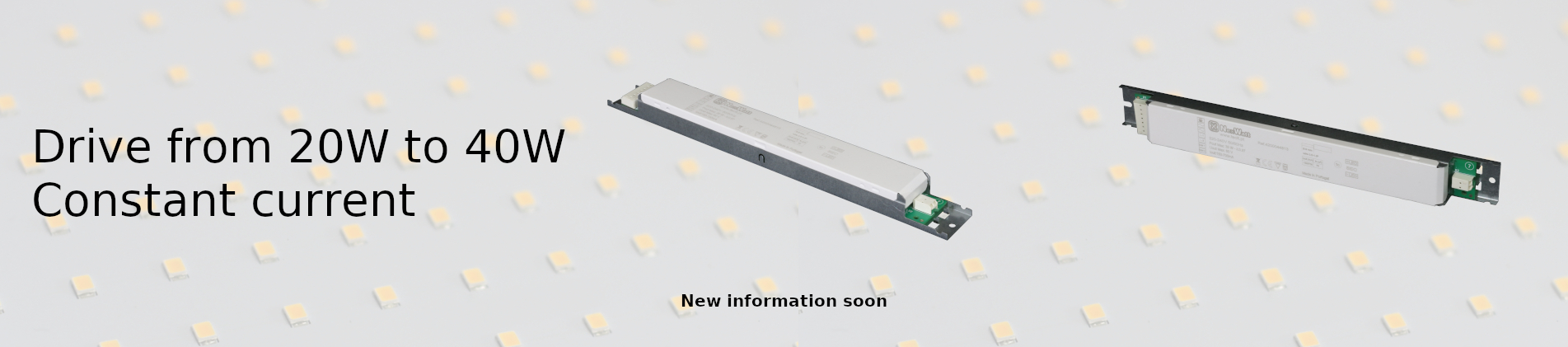

Drive from 20W to 40W constant current
More information

Characteristics
Iout: 250mA to 1200mA
Uout:15V-40V
Pout(Min):20W - λ:0.91  ||  Pout(Max):40W - λ:0.95
Ta: -20...+50ºC
Uout max: 58V
Dimensions (mm): 280x31x21

Drive from 40W to 80W constant current
More information

Characteristics
Iout: 350mA to 1400 mA
Uout:25V-45V
Pout(Min):40W - λ:0.94  ||  Pout(Max):40W - λ:0.97
Ta: -20...+50ºC
Uout max: 58V
Dimensions (mm): 360x31x21

×
